A complete manufacturing stack, in-house
From the first CAD model to the final coat, every critical process lives under one roof: fewer hand-offs, tighter control, and a shorter path from print to production.
Plus wood, acrylic, Lexan & foam on the CNC router. Sheet formats & the full equipment list →
Design & Engineering
Your sketch, STEP file, or drawing package becomes a manufacturable part before the floor sees it.
- CAD modeling & detailing (2D/3D)
- Design-for-manufacturability review
- Prototype-to-production engineering
Laser Cutting
Full sheets cut whole, with edges clean enough to skip straight to assembly.
- 6 kW fiber laser with 60″ × 120″ bed
- Cuts up to 1″ steel, 5/8″ aluminum & 1/2″ stainless
- Steel, stainless, aluminum, brass
Tube & Structural Laser
Tube and structural profiles cut, coped, and weld ready in one operation.
- 3 kW fiber tube laser with 300″ feed
- Runs full 24-ft sticks
- Fits 6″ × 6″ square tube, 6″ × 6″ channel & 6″ round tube
Plasma Tube Cutting
The Bendtech Dragon A400 takes the heavy sections that don't belong on a laser.
- Tube, pipe & structural sections
- Economical on heavy profiles
- Backs up the fiber tube laser
CNC Machining & Routing
Precision routed features and finishes across a full sheet footprint.
- CNC router with 60″ × 120″ table
- Bridgeport 3020 CNC machine
- LeBlond lathe for turned parts
Forming & Bending
Flat blanks become finished geometry, with bend angles that repeat across the whole run.
- Amada HDS-8025, 80-ton CNC press brake
- Amada HG-5020, 50-ton CNC press brake
- Enclosures, brackets & panels
Tube Bending
Accurate, repeatable radii bent into round tube on the floor that cuts it.
- Round tube from 0.75″ to 1.75″ diameter
- Wall thickness up to 0.120″
- Ercolina CNC rotary draw bender
Welding & Weldments
Eight stations deep, from robotic and laser cells to skilled hand welding.
- AWS D1.1 certified welding
- 7-axis robotic welder (Fronius TPI-400)
- 2 kW IPG laser welder

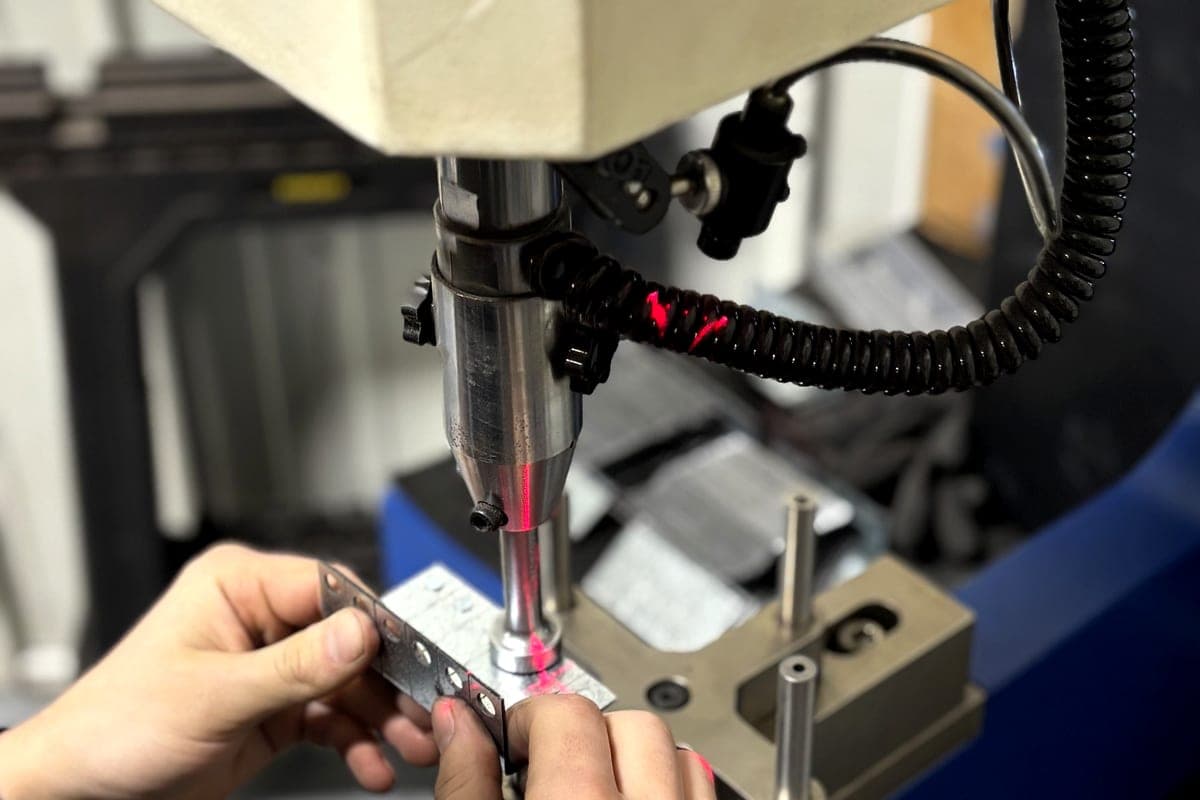

Hardware Insertion (PEM®)
Two PEM® insertion machines, a 618 press and a fully automated, self-feeding 1025, set hardware at production speed.
- PEM® nuts, studs & standoffs
- Short runs through production volumes
- Pressed in-house, in-line

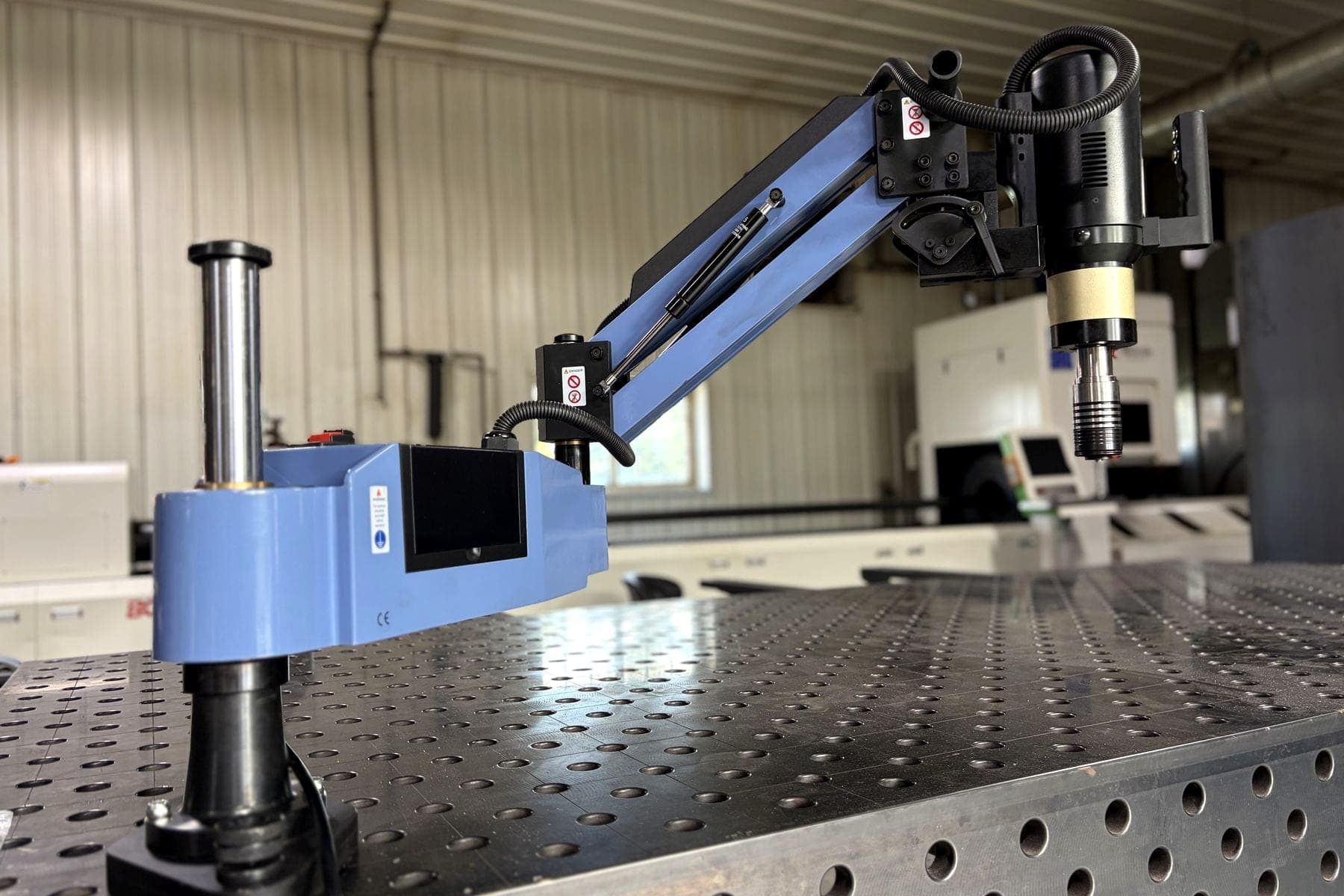

Drilling & Tapping
Drilled, tapped, and countersunk features without an outside machine shop.
- SFX M30R electric tapping arm
- 2× Bridgeport drill presses
- Countersinking to print
Sanding & Deburring
Every part leaves clean, consistent, and safe to handle.
- Newstech 2-stage automated deburring & finishing
- Consistent edge break & surface finish
- Hand sanding for cosmetic surfaces
Finishing
Parts finished to spec in-house, or through coating partners we manage end to end.
- In-house paint, zinc coating & clear coat
- Wax coatings & acidic patina finishes
- Powder coating through trusted partners
Assembly & On-Site Installation
Assembled in-house, then delivered and installed by the crews that built it.
- Dedicated full-product assembly station
- Sub-assembly & full assembly
- Field delivery & installation
Not sure which process you need?
Send us the part. We'll assess the part and quote it.
